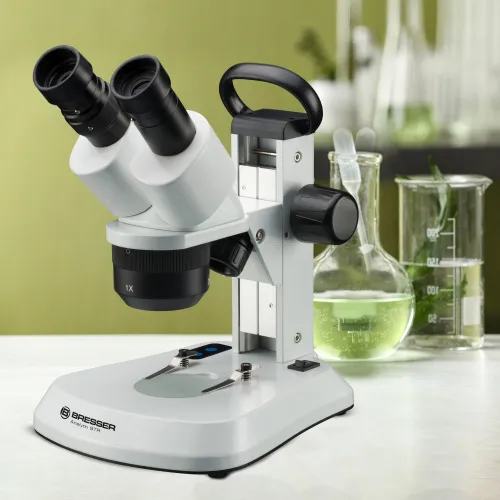

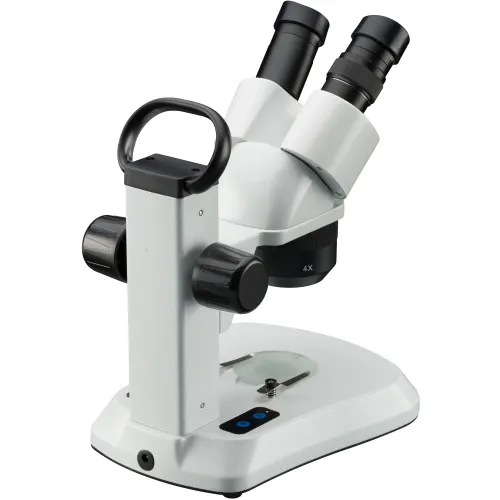

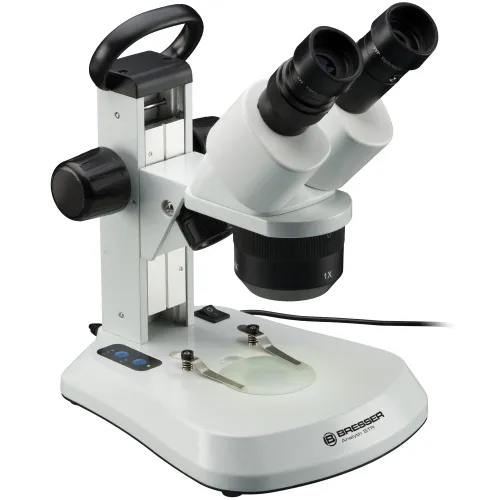

Stereomikroskop Bresser Analyth STR 10x - 40x

The Analyth STR with a MikrOkular Full HD eyepiece camera features 3 different objective magnifications that can be easily changed by turning the objective. The 10x, 20x and 40x magnifications are therefore directly changeable. Thanks to the stereo design, structured objects appear particularly vivid and three-dimensional. The low 10x starting magnification is ideal for working with children, and allows you to observe objects with a size of up to 20 mm. The Analyth STR is suitable for a diverse range of applications. It can be used to inspect insects, plants, minerals and much more, whether at home, at school or in the workplace. The stereo microscope can also be used for quality inspections, in horticulture and agriculture, for hydrology, and many other applications.

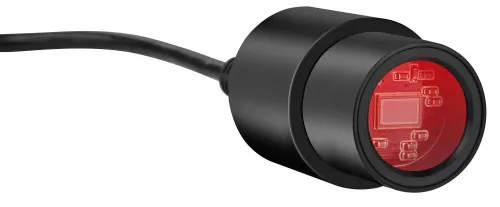

Thanks to the supplied Full-HD eyepiece camera, you can save images and videos of your observations directly on your PC in Full HD resolution. Simply replace the eyepiece with the MikrOkular Full HD eyepiece. You can then document your microscope observations or share them with others with a simple click.

The interpupillary distance and dioptre compensation can be adjusted individually. The eyepieces have a large 20 mm field of view. They are equipped with removable rubber eyecups as well as a built-in protection mechanism to prevent removal.

The microscope can be powered with the power adapter or with 3 batteries (not included). It is therefore suitable for mobile use, such as outdoors in the garden or on excursions.

Key features of the microscope:

• Microscope with 3 pairs of objectives, 10x, 20x and 40x objective magnifications
• Wide-field eyepieces with eyecups and 20 mm field of view
• Bright and efficient LED light, adjustable angle
• Lighting for reflected and transmitted light can be controlled separately
• Dimmer via membrane keys, with status indicator

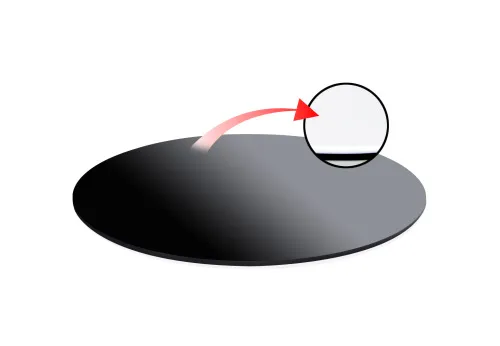

• Two stage plates (black/white and glass matte), with slide clamps

Key features of the camera:

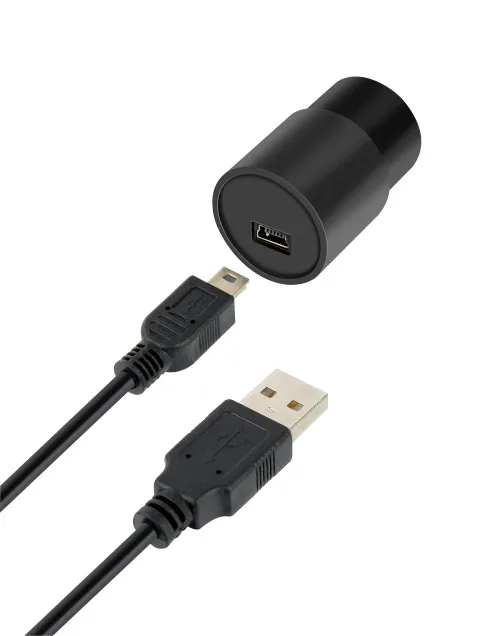

• Metal housing, mini USB port
• Resolution: 1920 x 1080 pixels, Full HD
• Frame rate: up to 25 fps
• Pixel size: 3x3 µm, sensor size: 5.86 x 3.28 mm
• 23.2 mm barrel diameter, built-in UV/IR blocking filter
• 30 mm and 30.5 mm microscope adapter
• 31.7 mm (1.25”) telescope adapter with filter thread for 1.25” filter
• Multilingual recording software for Windows
• Image formats: jpg, bmp, tif, png
• Video format: avi

The kit includes:

• Microscope with 3 magnifications (10x, 20x, 40x)
• HD-MikrOkular camera module with dust protection cover
• USB cable
• Software CD (CamLabLite software)

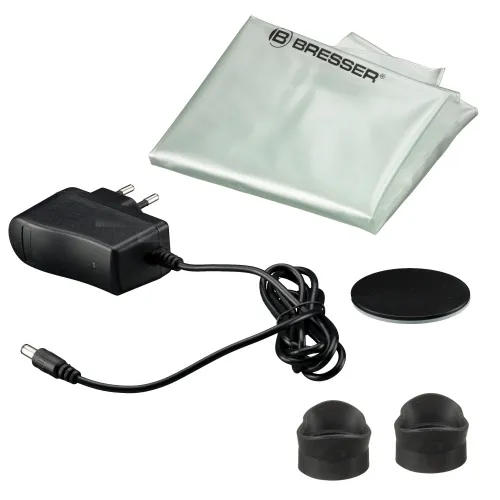

• Metal stand with LED light, power adapter and battery compartment
• 2 eyepieces with rubber eyecups
• Glass stage plate
• Plastic stage plate (black/white)
• Dust protection cover
• Instruction manual
